RXFK-100 Model

发布日期:[2021-08-29]     点击率:
RXFK-300 Model RXFK-100 Model 自动发卡机

适用范围

本产品将整叠片状产品如: 明信片、贺卡、挂牌、包装袋、未成形纸盒、标签、信封、红包等;

折叠状产品如: 说明书、宣传海报及各种不同尺寸的折叠状产品;

本状产品如: 说明书、卡片书、笔记本、动漫小书、杂志及各种不同尺寸的本状产品,自动分开,成单个传送到输送带上。它既能够单独作分卡计数使用,亦可以轻松地整合到相关联的设备中作自动分卡、配合各种自动包装线使用,例如: 枕式包装机、立式包装机、自动输送机、自动收缩包装机、装箱机等。


主要性能及特点

伺服电机驱动系统,PLC控制器以及触控界面,操作简单易用。各种设置、操作均可在触摸屏上轻松完成,同时具有存储功能,设置好相关数据开机自动操作。

伺服电机最高速度可达到50米/分钟。

自动发卡机对接全自动包装机,根据不同的包装数量快速自动发卡。

漏卡、无卡自动报警功能,可选择发单张、多张及连续发卡功能。

采用光电控制,开启总电源开关后,光电感应,自动发卡。

与自动化包装设备的匹配,真正实现一体化自动包装。

系统本身带有多项功能设定,包括预发卡长度、每次设定发卡数量、重卡无卡片时有自动停机报警等功能,实时在线控制。


性能技术参数

发卡速度500张/每分钟(与卡片尺寸有关)
发卡厚度0.1mm-3mm
发卡尺寸

发卡长度:45-150mm 发卡宽度:32-100mm

动力控制系统伺服电机驱动PLC控制
电源及功率220V/450W

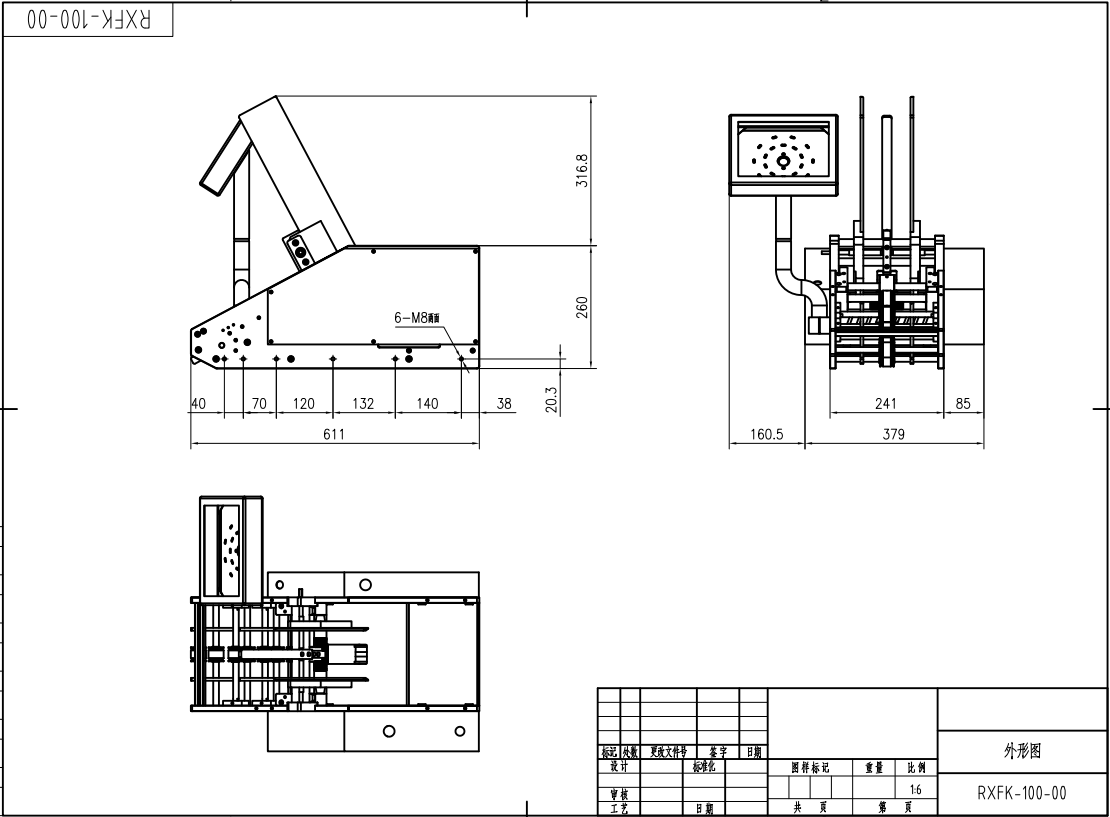

外形尺寸约(长)630*(宽)430*(高)600mm
机器重量约25公斤





Scope Of Application


This product will be stacked in sheets such as:Postcards, greeting cards, tags, packaging bags,unformedcartons,labels, envelopes, red envelopes, etc;

Folded products such as:Instructions, posters and various sizes of folding products;

This product is as follows:Manual, card book,notebook,comic book, magazine and various sizes of thisproduct, automatically separated into a sincle transmissionTo the conveyor belt.It can not only be usedfor sub card counting alone, but also can be easilyintegrated into the associated equipment for automaticcard distributionPackaqing line use, such as: pillow packaging machine, vertical packaging machine,

automatic conveyor, automatic shrink packaaina machine,packing machine, etc.


Main performance and characteristics

Servo motor drive system.PLC controller and touch interface.easy to operate.All kindsof settings and operations can be easily completed on the touch screen.At the same time,

it has the storage function, and the relevantch 50 ml min. The maximum speed of servo motor can reach 50 m / min.

The automatic card issuing machine is connected with the automatic packaging machine,and the card can be issued automatically according to the different packaging quantity.

Automatic alarm function of missing card and no card.Single card, multiple card andcontinuous card issuing function can be selected.

Photoelectric control is adopted.After the main power switch is turned on, photoelectricinduction and automatic card issuing are realized.

Real integration of packaging and automation.

The system itself has a number of functions, including pre card length, number of cards pertime, automatic stop alarm when there is no card for heavy card, and real-time online control.


Performance technical parameters

Card issuing speed500cards / min (related to card size)
Hairpin thinkness0.1mm-3mm
Card size

Card length:45-150mm

Card issuing width:32-100mm

Power control systeServo motor driven PLC control
Power supply and powe220V/450W
DimensionsAbout(length)630*(width)430*(height)600mm
Machine weighAbout 25 kg
